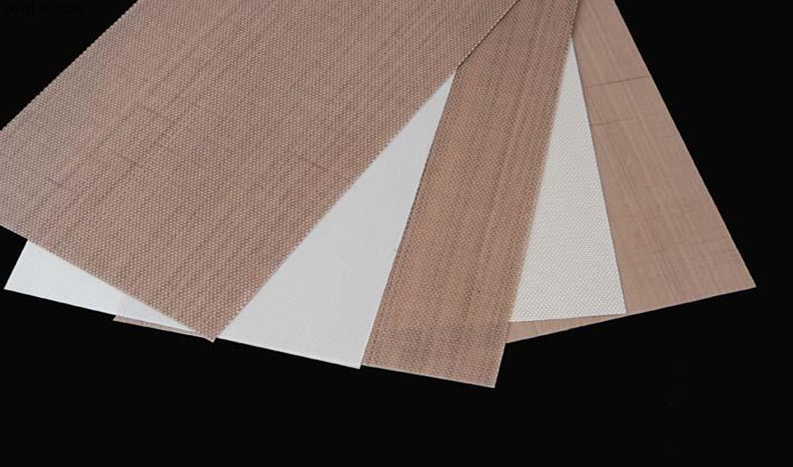

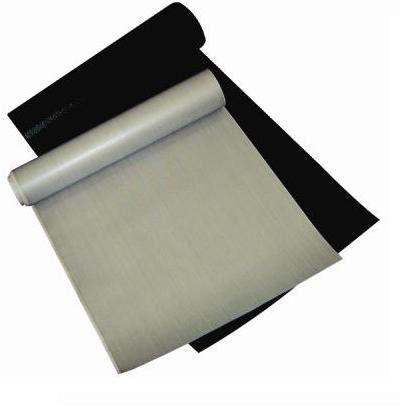

PTFE High temperature cloth

PTFE high temperature cloth using high-quality imported glass fiber for weaving materials, for the plain weave or special weaving into high-grade fiberglass cloth base material. The use of unique technology, fully soaked, impregnated, coated with imported Teflon (PTFE) resin, the production of a variety of thickness of a wide range of PTFE-resistant high temperature paint cloth.

Teflon High temperature welding cloth main performance characteristics: 1, for Low-temperature-196 ℃, High-temperature 350 ℃ between, with weather resistance, anti-aging.

After practical application, such as in 250 ℃ high temperature in a row for 200 days, not only the strength will not be lower, and the weight is not reduced, at 350 ℃ high temperature placed 120 hours, weight only reduced by about 0.6%, -180℃ ultra-low temperature will not produce cracks, and maintain the original softness. 2, non-adhesion: not easy to adhere to any material.

It is easy to clean all kinds of oil stains, stains or other attachments attached to its surface, paste, resin, paint and so on almost all sticky substances can be simply removed;

3, resistance to chemical corrosion, strong acid, strong alkali, aqua regia and various organic solvents corrosion.

4, low friction coefficient (0.05-0.1), is the best choice of oil-free self-lubricating.

5, light transmittance up to 6~13%.

6, with high insulation performance (dielectric constant small: 2.6, tangent to under 0.0025), Anti-ultraviolet, anti-static. 7. Good dimensional stability (elongation coefficient is less than 5), high strength.

With good mechanical properties. 8, chemical resistance, non-toxic.

Almost all pharmaceutical items are resistant to it. 9, Fire retardant

Teflon heat-resistant welding cloth application range:

1, anti-sticky lining, gaskets, Montboux and conveyor belt, according to different thickness, used in various drying machinery conveyor belt

2. Welding of plastic products, welding cloth for welding and sealing, plastic film, film, Hot sealing and pressure strip lining. 3, high electrical insulation: electrical insulation with base, spacer, gasket, lining ring.

High frequency copper clad laminate plate.

4, Solar PV module: laminating machine heat-resistant cloth

5, microwave gaskets, oven slices, food drying, 6, adhesive tape, transfer printing hot cloth, carpet back curing conveyor belt, rubber vulcanization conveyor belt, abrasive film curing off-type cloth.

7, pressure sensitive tape base cloth.

8, the construction membrane material: each kind of sports place's top Peng, the station Pavilion Peng, the parasol, the landscape Peng and so on.

9, for all kinds of petrochemical pipeline anti-corrosion Bao, power plant waste gas environmental protection, such as desulfurization.

10, heat-resistant cladding layer, laminated base material, heat-insulating body bandaging.

11, special processing can be produced "anti-static cloth."

Teflon High temperature welding cloth main varieties Specifications:

Thickness: 0.06-1.0mm.

Fabric Organization: Plain, twill, satin width: 1000-4200mm.

Color: Brown, white, black, black, silver, pink Coating methods: double-sided coating, single-sided coating, breathable coating, anti-static coating.
